Bosch Performance Line CX
Description
Description

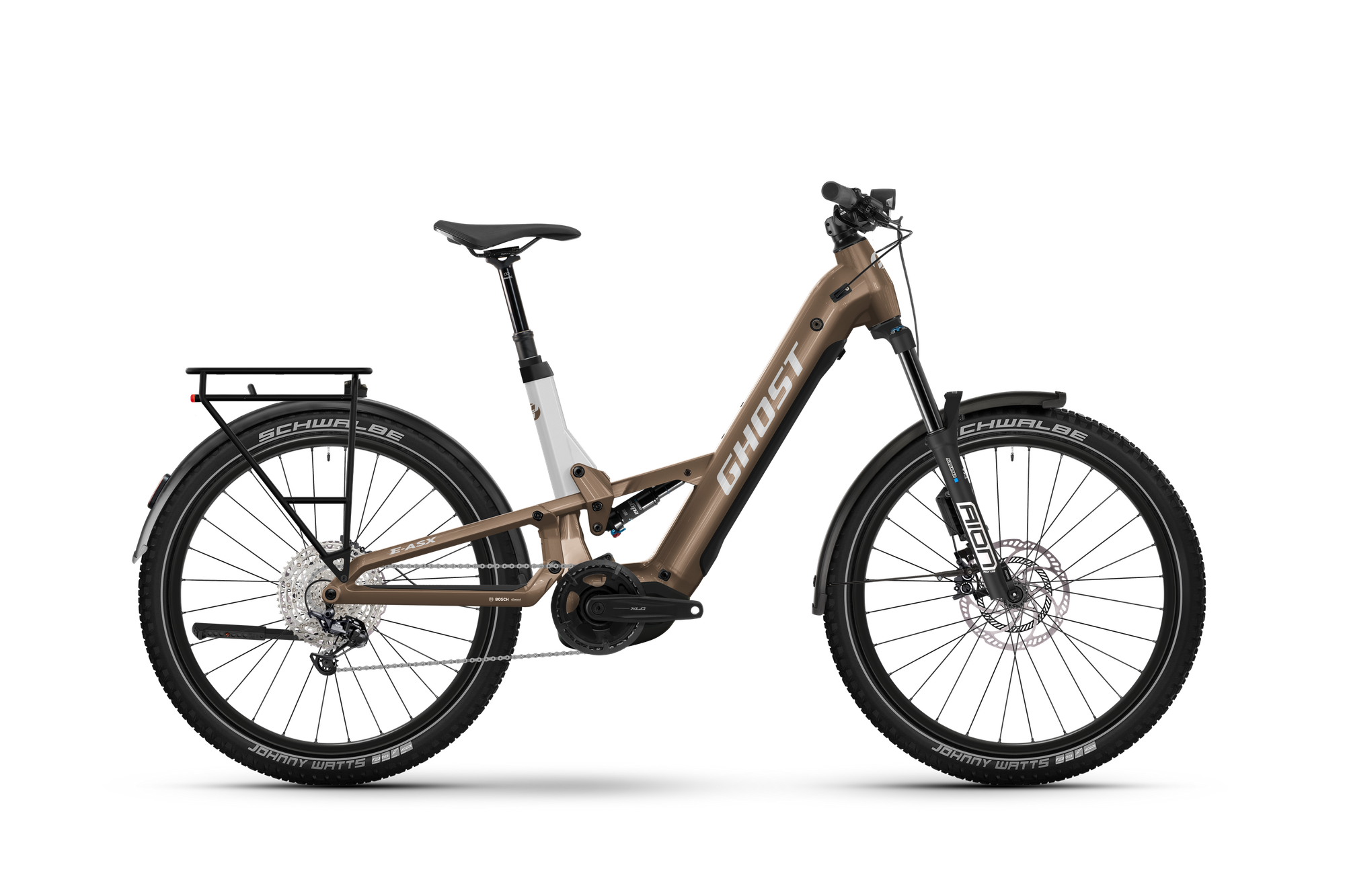

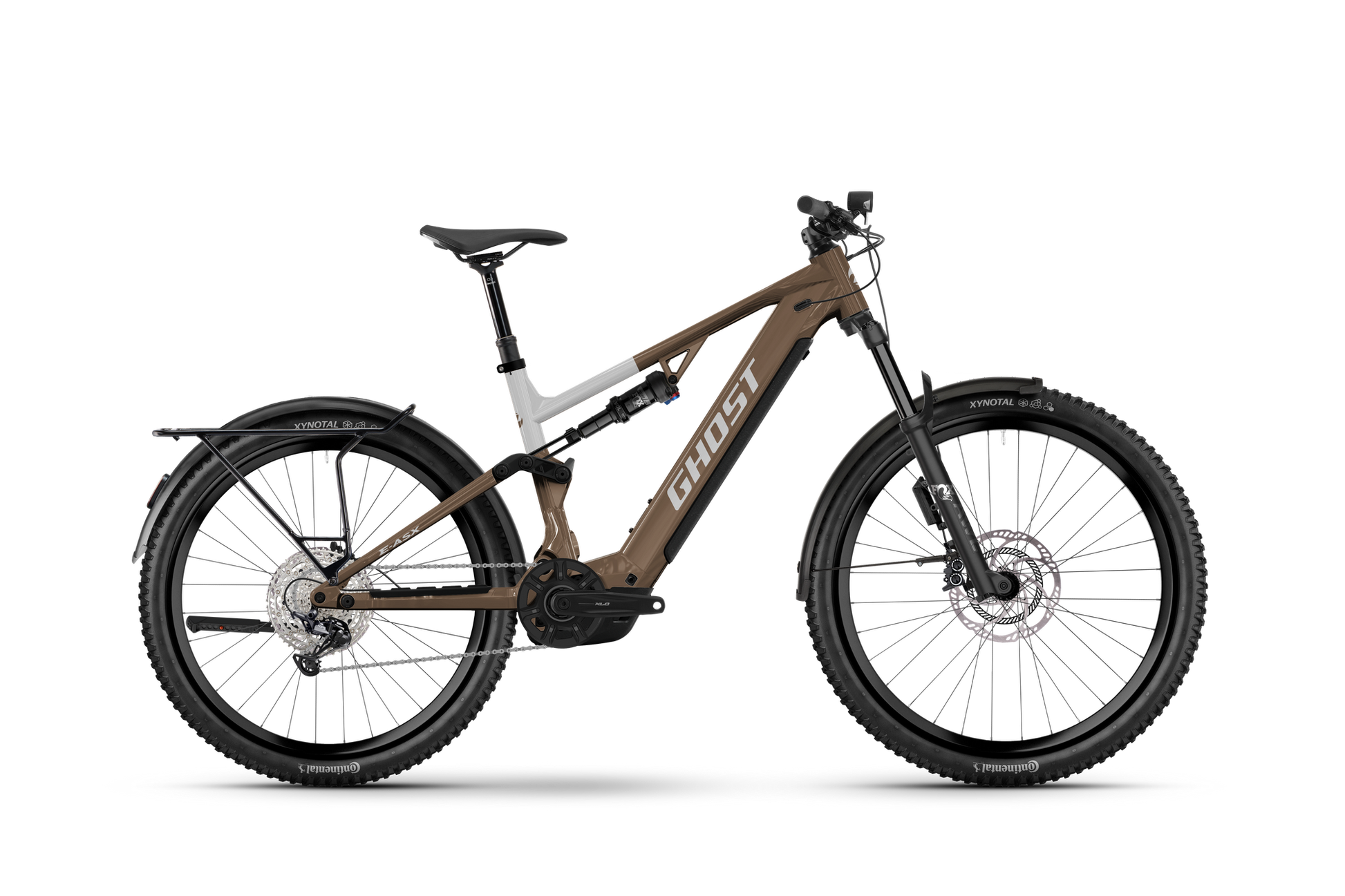

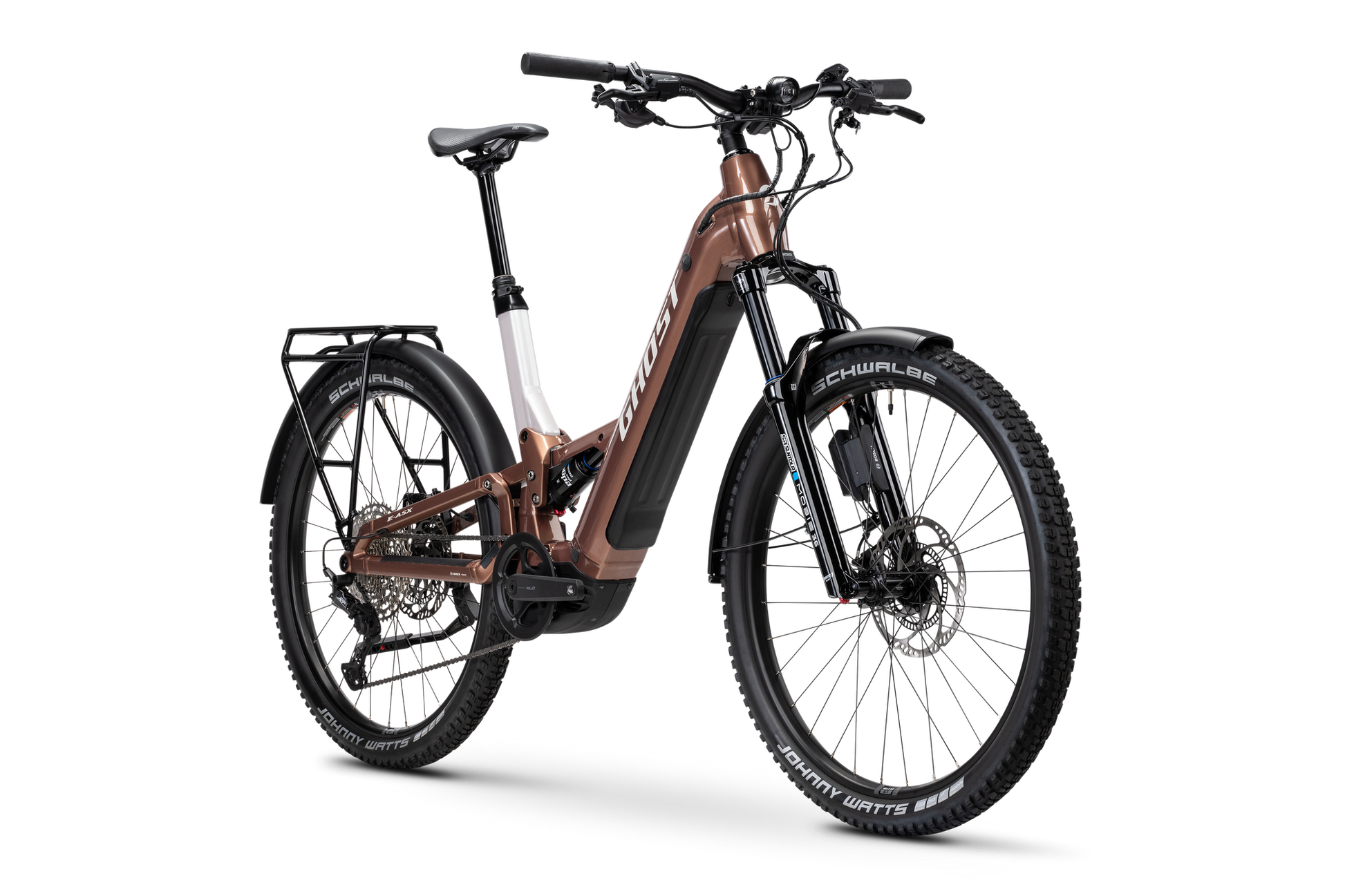

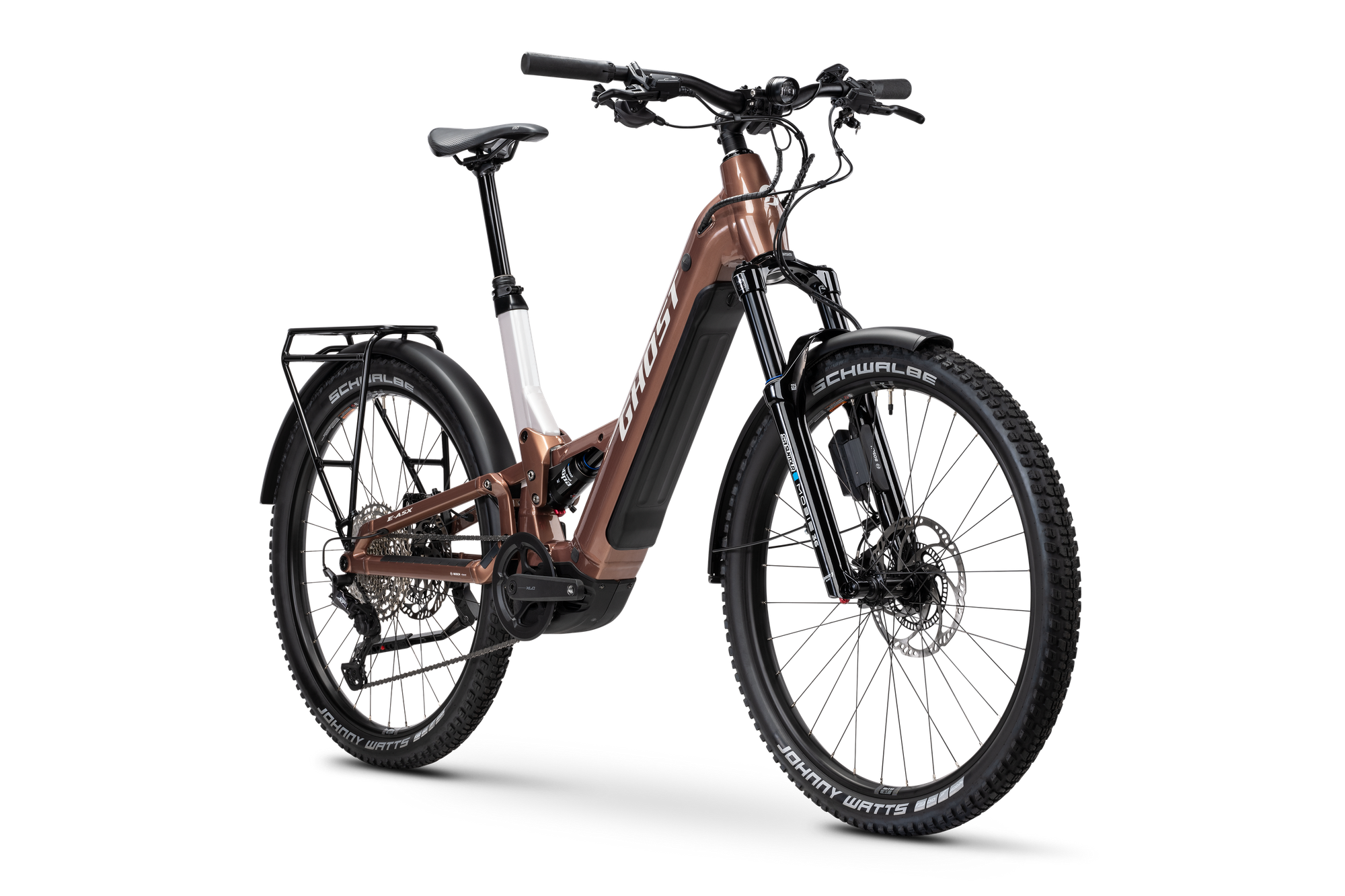

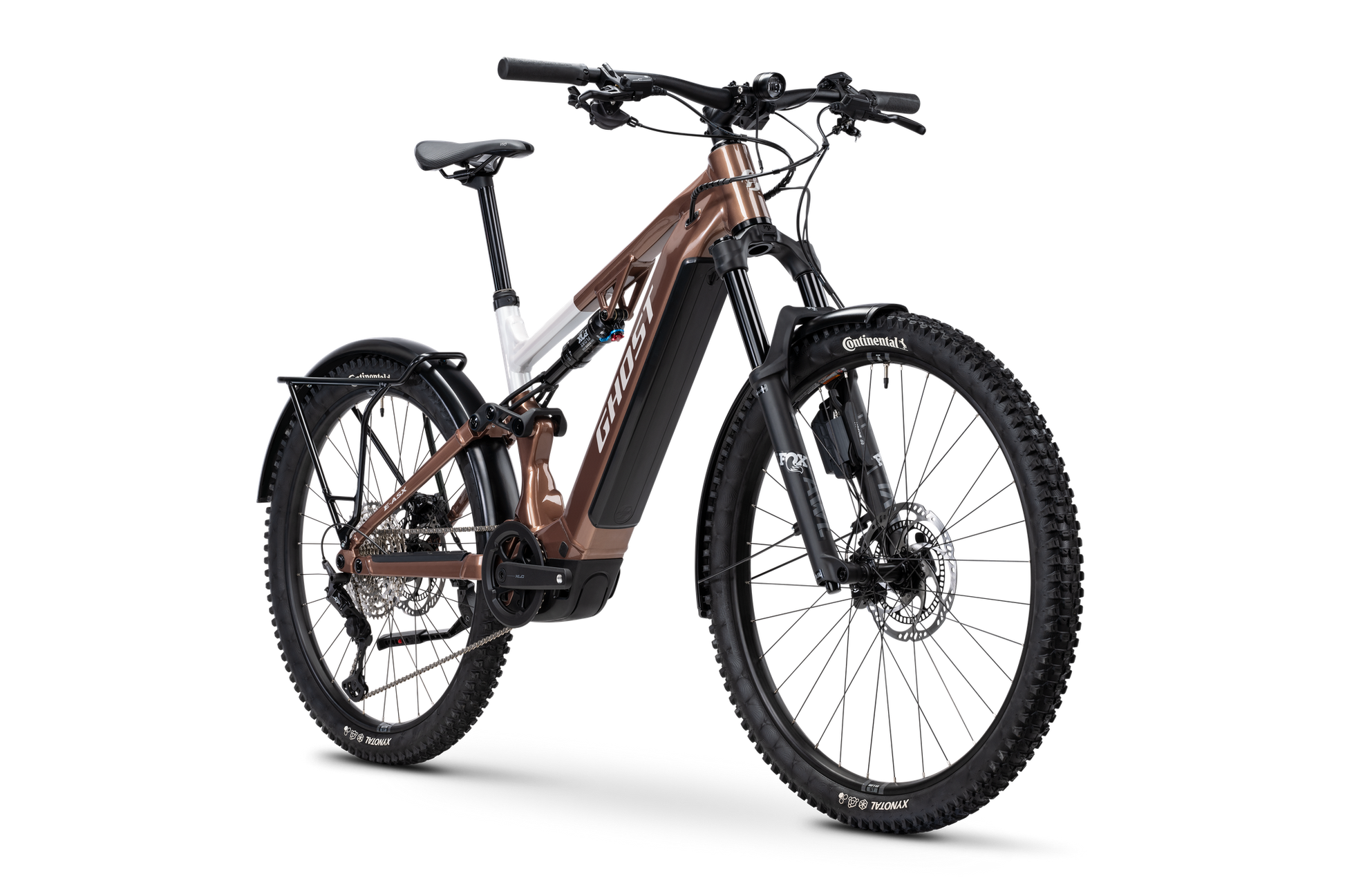

Everyday suitability meets off-road mobility: The GHOST E-ASX ABS EQ combines 150mm of suspension travel at the front and 140mm of suspension travel at the rear with complete road equipment. The result is an e-bike that combines exceptional comfort with control on all surfaces. A special highlight is the integrated ABS, which ensures additional safety, especially during sudden braking maneuvers. The powerful Bosch motor and 800WH battery power guarantee you power and range for long commutes and demanding tours. The E-ASX ABS is an extremely versatile e-mountain bike for every ride - whether in the city or off-road.
Specifications
e-System
e-System
Battery: Bosch InTube 800 Wh
Charger: Bosch Charger 4A 220-240V
Display: Bosch Kiox 300 + LED Remote
Motor: Bosch Performance Line CX
Frame
Frame
Frame: HIGH Aluminium Uni
Maximum loadable weight: 150 kg
Drive
Drive
Cassette:
Chain: Shimano Deore CN-M6100 12s
Crankset: Crius ISIS CRNKS + spiderless CR BDU38 + Bashguard
Derailleur Rear: Shimano Deore XT RD-M8100-SGS 12s, Shadow+
Gear: Shimano Derailleur
Number of gears: 12
Shifter Right: Shimano Triggershift Deore XT SL-M8100-R, Rapidfire+
Suspension
Suspension

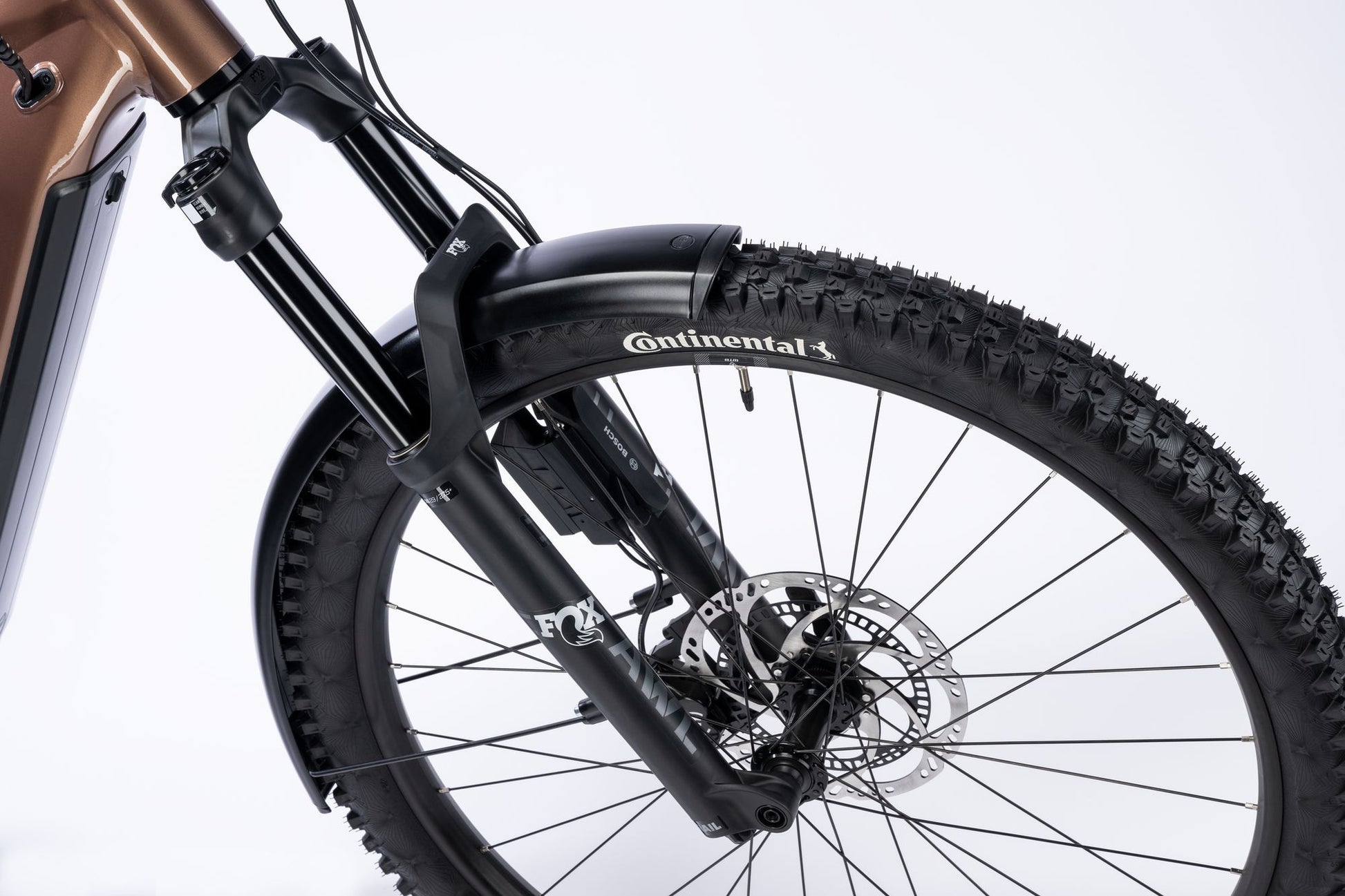

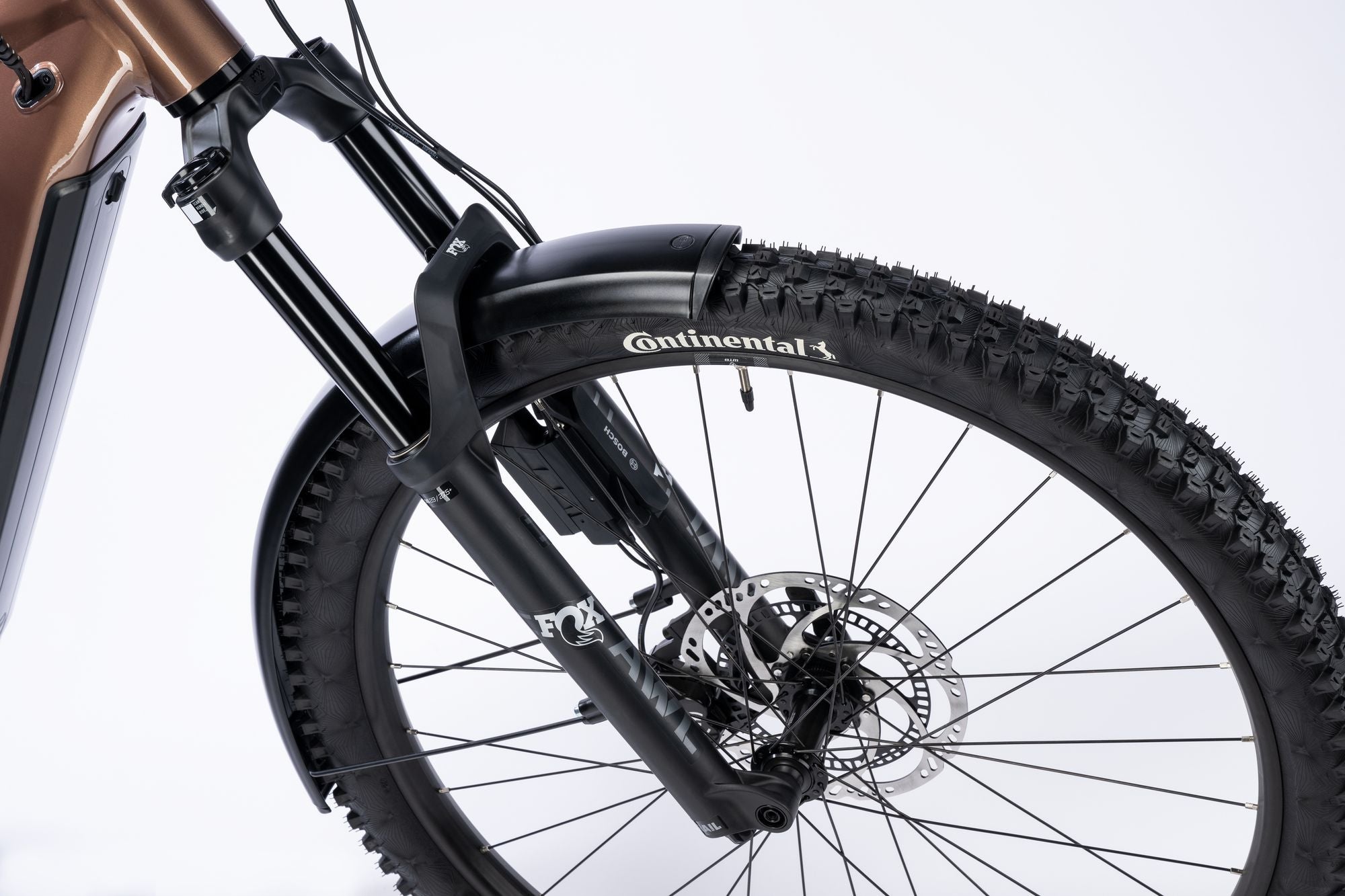

Front Fork: FOX Factory 36 Float, AWL HD, RAIL 2.0, Sweep-Adj., 150 mm, QR
Components
Components
Brake light:
Front Brake: Magura Hydraulic Disc brake MT C Allroad ABS, 4 pistons, 203 mm
Rear Brake: Magura Hydraulic Disc brake MT C Allroad ABS, 4 pistons, 203 mm

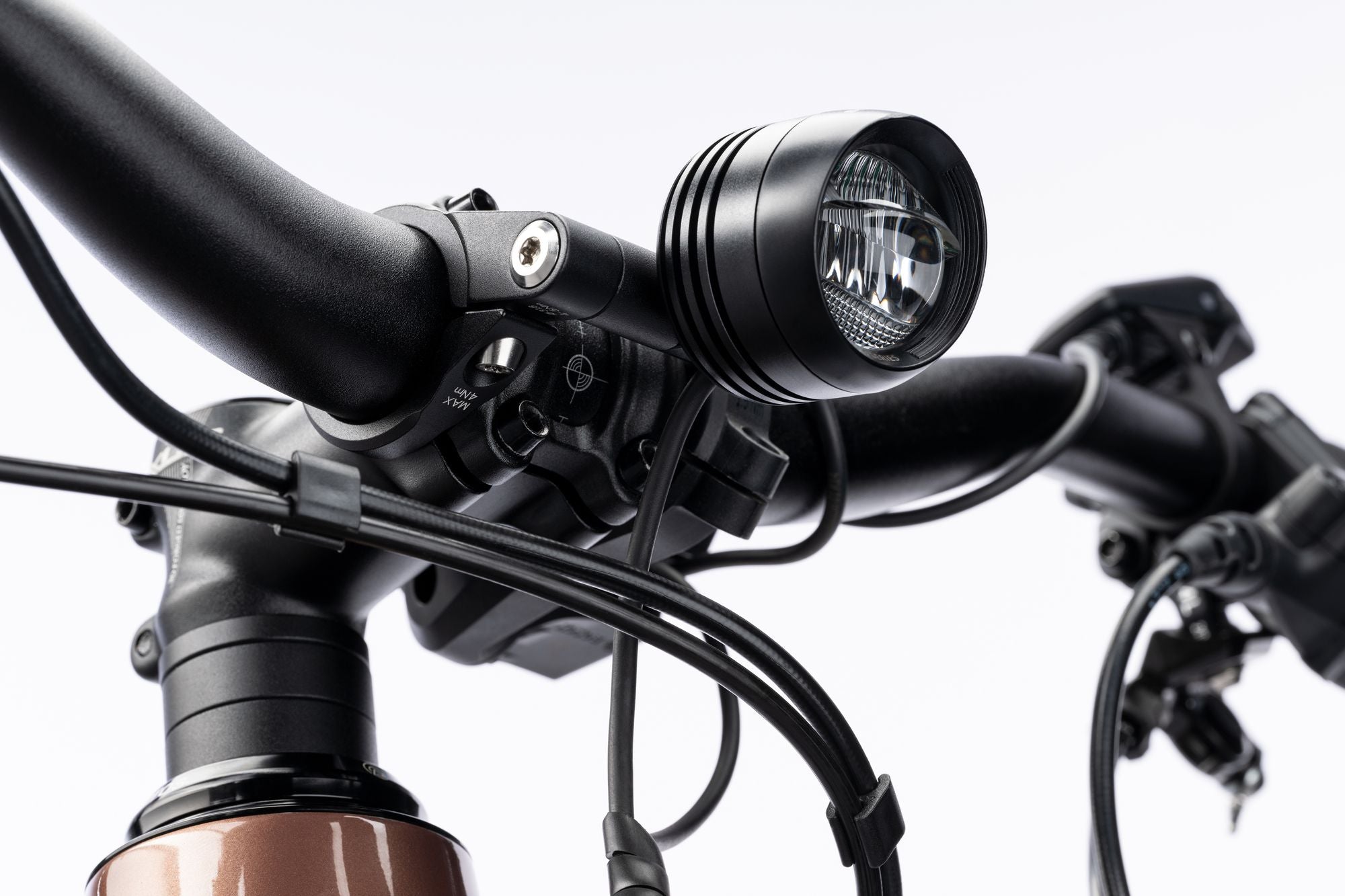

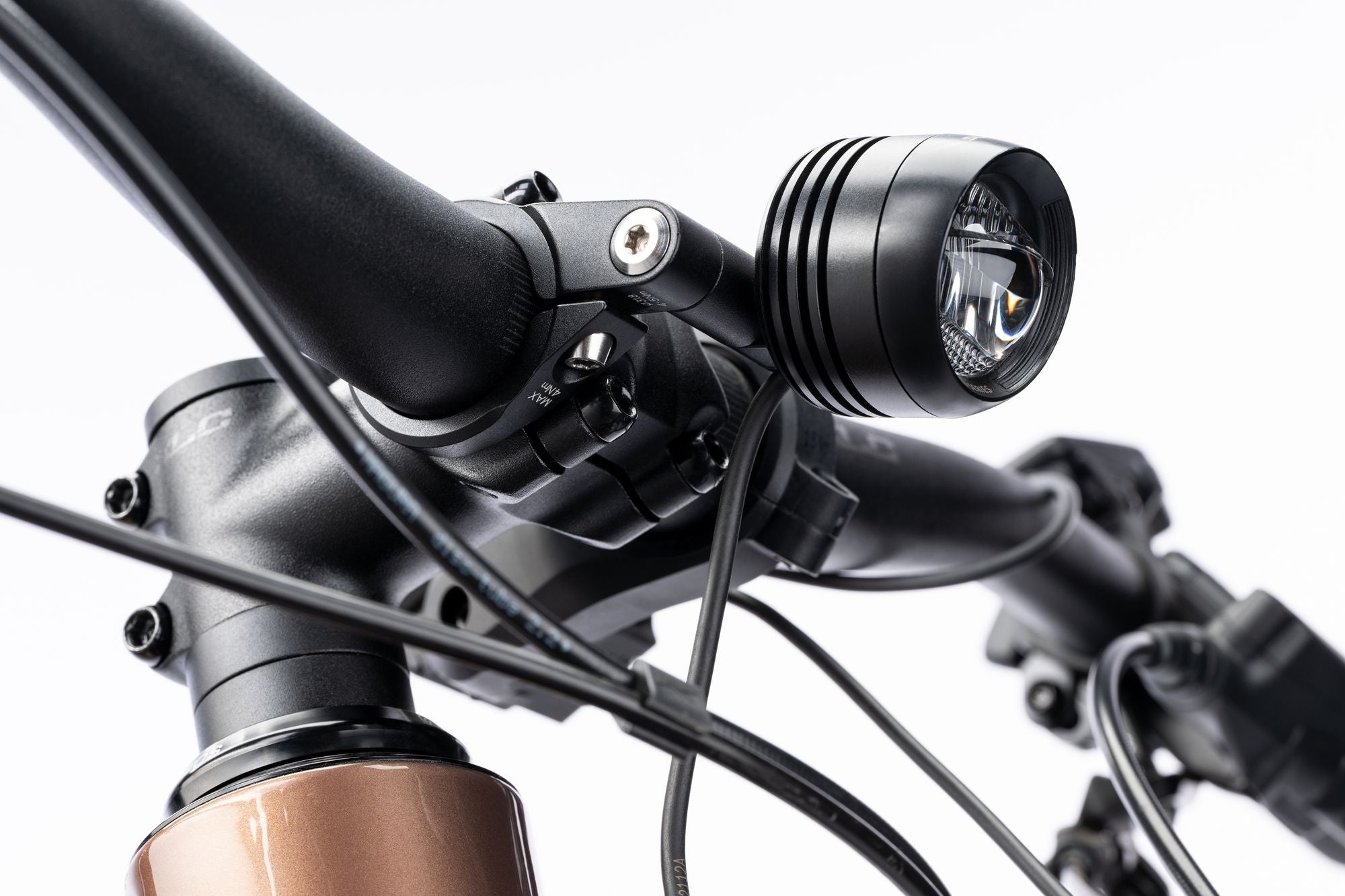

Headlight: Supernova Mini 3 Pure, 12V
Rear Light: Supernova TL3 Z, 12V, 1,5W
Grips: XLC MTB Grip Set VLG-1751D2
Handlebar: XLC Riser Bar MTB CAT4, Dia. 31.8 mm, Rise: 20 mm, backsweep 9°
Pedal: VP VPE-527 Alloy w/ Reflector
Saddle: Selle Royal MTB Vivo 1216HRN
Seatpost: Limotec Dropperpost Alpha 1 Dropper, Dia. 34.9 mm, Travel: 150 mm
Wheelset
Wheelset
Front wheel set:
Rear wheel set:
Rim: WTB ST i30 TCS 2.0 29 32H
Tyre: Continental Xynotal Trail Endurance, foldable skin SL 60-622
*The illustration above is an example. We reserve the right, as long as the type, suitability and purpose of the bike are not reduced, to replace individual parts with components of the same or higher quality, so that the bike is delivered differently. The use of other components is currently mainly caused by delivery problems
